Brass CPVC Insert

Brass CPVC Insert Manufacturer in India

Supplier of Brass CPVC Inserts

We are the leading Brass CPVC Insert manufacturer in India. The entire range is manufactured using the premium quality raw materials. They are available in sizes from 0.5 to 1 inches, it is manufactured using the best quality brass, have nickel and chrome plated, head shape of hexagonal, and besides we also provide the customization facility. They have threading of Metric, BSPT, BSP, ISO, NPTF, NPT, etc.

Features of Brass CPVC Inserts

The features of the Brass CPVC Insert are stated below:

  • Superior quality
  • Available in different sizes
  • Have accurate dimension
  • Stronger in nature
  • Easy customization
  • Available at a user friendly price
Request A Quote

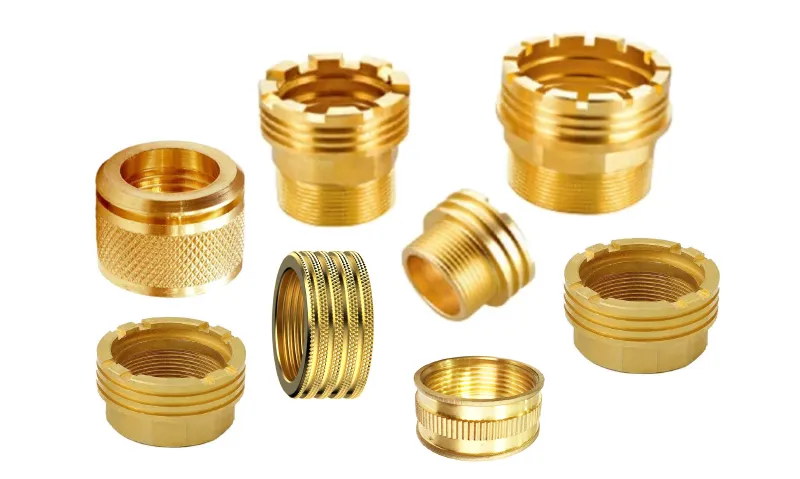

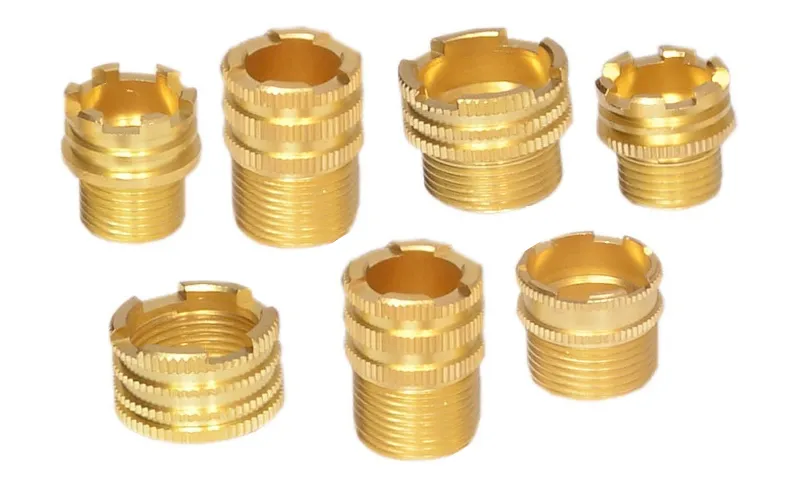

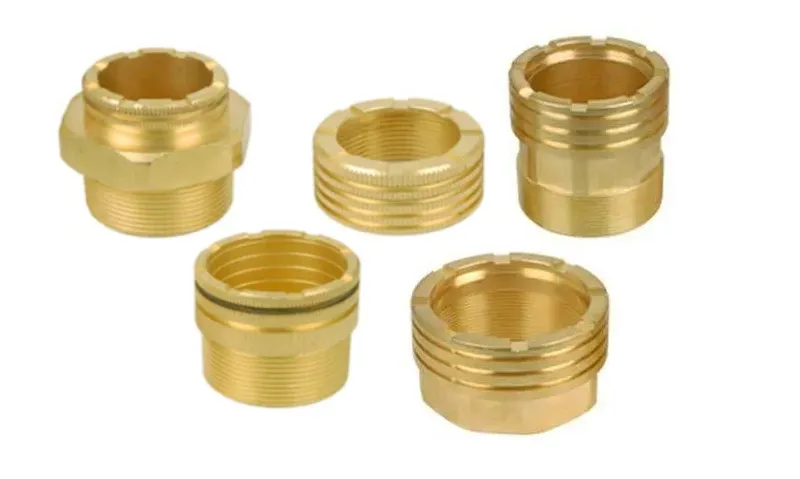

Brass CPVC Insert Range

Brass CPVC Inserts Type 1
Brass CPVC Inserts Type 3
Brass CPVC Inserts Type 5
Brass CPVC Inserts Type 4

Technical Specifications of Brass CPVC Inserts

Precious Metal Industries manufactures high-integrity Brass CPVC Inserts designed specifically for overmolding and heat insertion into Chlorinated Polyvinyl Chloride fittings (ASTM F439 / ASTM D2846). Below are standard technical parameters:

Parameter Standard Specification Custom Options Available
Nominal Sizes 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" (DN15 to DN50) Custom intermediate and stepped diameters per drawing
Thread Types Female (Parallel BSPP ISO 228), Male (Tapered BSPT ISO 7, NPT ANSI B1.20.1) Metric ISO (6H tolerance), UNC / UNF American threads
Material Grades CW617N (CuZn40Pb2), CW614N (CuZn39Pb3), C36000 Free-Cutting Brass, C37700 Lead-Free Brass (<0.1% Pb), DZR Dezincification Resistant Brass (CW602N)
Knurling & Anchoring Heavy Diamond Knurl, Deep Radial Hex Collars, Undercut Locking Grooves Straight longitudinal ribs, reverse helical serrations
Dimensional Tolerance ±0.02 mm (critical dimensions), Thread fit 6H / Class 2B Precision CNC micrometer tolerance down to ±0.01 mm
Surface Plating Natural Clean Degreased Brass, Nickel Plated, Chrome Plated Electro-tin plated, ultrasonic acid-cleaned finish
Operating Pressure & Temp Working pressure up to PN25 (25 bar), temperature up to 93°C (200°F) High-pressure hydraulic & industrial variants

Have Custom CPVC Insert Drawings?

Submit your 2D PDF or 3D STEP/IGES CAD drawings for rapid DFM analysis, tolerance feasibility, and factory quotation within 24 hours.

Submit CAD Drawing
Got Questions?

Frequently Asked Questions – CPVC Brass Inserts

1 What brass alloy is recommended for potable water CPVC fittings?

For drinking water plumbing compliance (NSF/ANSI 61 and European Drinking Water Directive), we recommend CW617N (CuZn40Pb2) or Lead-Free ECO brass (CuZn39Pb0.2 / C27450). These alloys deliver exceptional tensile strength while preventing heavy metal leaching into potable supply lines.

2 How do CPVC brass inserts resist rotational torque during pipe installation?
3 Can you manufacture brass CPVC inserts per custom American NPT threads?

Need custom CPVC insert threading or bulk pricing? Contact our engineering team directly for fast quotation and samples.
